ITF standard acrylic middle layer material
ITF standard acrylic middle layer material
- Detail
- Parameters
Decription
Acrylic material CP051 is water-born and highly permeable emulsions.
Applied mixed with silica sand, will effectively enhance the site strengthand smoothness.
Technical Data
| Item | Data |
| Shape | Transparent liquid |
| Viscosity（25℃，Mpa·s） | 4000-10000 |
| Solid content（%） | ≥ 99 |
| Applicable period（25℃，min） | ≥ 60 |
| Curing time（25℃，h） | ≤ 24 |
| Tensile Strength（MPa） | ≥1.8 |
| Elongation at break (%) | ≥30 |
| Impermeability (Mpa) | ≥0.8 |
| Bonding strength(Mpa) | ≥1.0 |
Package and Storage
Packing: 25kg/drum
Stored in a cool, ventilatedand dry warehouse, keep away from fire and heat sources, and keep waterproof,damp proof and light proof.
Storage period: six monthsfrom the date of production. More than the storage period, the test cancontinue to use.
Composition
| Chemical Name | In % by Weight | CAS No. | EC No. | Molecular Formula |
| 4-HYDROXYLATEDACRYLIC RESIN | 88.8% | 2478-10-6 | 219-606-3 | C7H12O3 |
| Methyl acrylate | 10% | 96-33-3 | 202-500-6 | C4H6O2 |
| 4,4'-Diphenylmethanediisocyanate | 1% | 101-68-8 | 202-966-0 | ----- |
| water | 0.2% | 7732-18-5 | 215-185-5 | H2O |

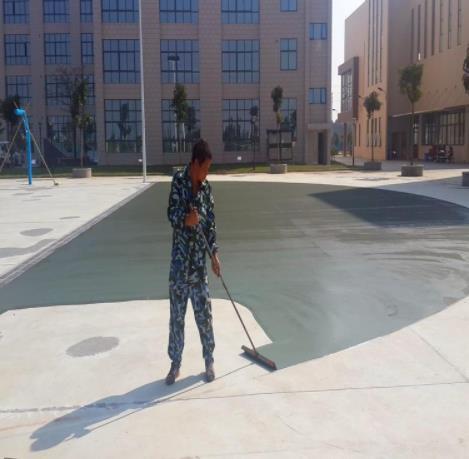

Installation
1) It should apply 2 layers by squeegee. 2layers total usage is 0.5kg/㎡
2) The first layer: 0.3kgCP051 material mix +0.3kg silica sand +0.015kg cement+0.3kg water mix and stir evenly,after 10hours cured, it will become 1mm.
3) The second layer: 0.2kgCP051 material mix +0.2kg silica sand +0.01kg cement+0.2kg water, mix and stir evenly,after 10hours cured, it will become 0.6mm.
Note
1) According to the basis of construction and weather conditions, the amountof sand and water will be adjusted appropriately, the ground surface is rough,and at the same time, more quartz sand will be added. When the temperature ishigh, some water can be added to the ground.
2) During the curing, there may be falling leaves or other winds into thevenue of the debris, the formation of solidified layer, must be completelyclean.
3) The uncured material should not touch theskin for a long time. If you accidentally enter the eyes, rinse with plenty ofwater and go to the doctor in time;
4) This product is a chemical product. It isforbidden to be eaten. It is forbidden to be implanted in the body, so as toavoid child contact.
5) In case of fire, it is recommended to use powder, carbon dioxide or foamfire extinguishing agent. Firefighters should be protected.
